Carbon Steel Gas Springs

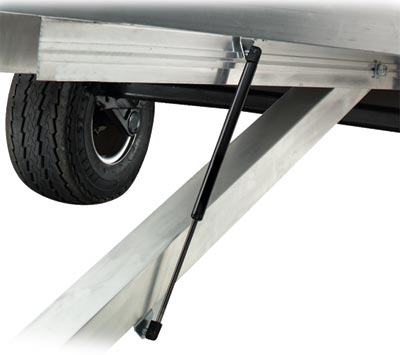

Ameritool offers a wide variety of Nitride coated steel gas springs. Gas springs provide a controlled opening force, making them ideal for lids, doors and hatches that need assistance opening up.

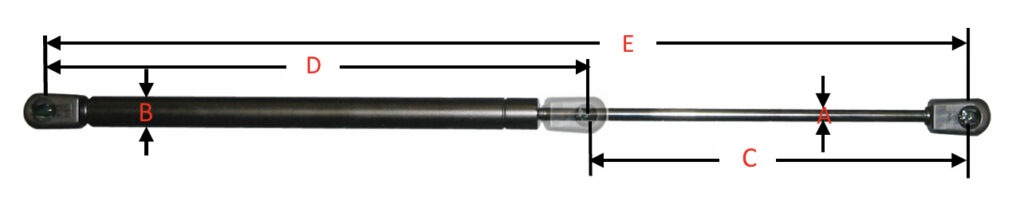

The chart below shows Ameritool gas springs are available in many sizes and forces. Gas springs are also known as gas struts, gas props, gas pistons or gas lifts.

Carbon Series Gas Springs - 6x15 Fixed Force

SKU	Rod Diameter (A)	Body Diameter (B)	Stroke (C)	Compressed Length (D)	Extended Length (E)	Max Lifting Force
SKU ML11	Rod Diameter (A) 0.25 (6.4)	Body Diameter (B) 0.625 (15.9)	Stroke (C) 2.25 (57.2)	Compressed Length (D) 5.25 (133.4)	Extended Length (E) 7.5 (190.5)	Max Lifting Force 80
SKU ML10	Rod Diameter (A) 0.25 (6.4)	Body Diameter (B) 0.625 (15.9)	Stroke (C) 3.0 (76.0)	Compressed Length (D) 7.0 (167.6)	Extended Length (E) 10.0 (254.0)	Max Lifting Force 80
SKU ML15	Rod Diameter (A) 0.25 (6.4)	Body Diameter (B) 0.625 (15.9)	Stroke (C) 3.5 (89.0)	Compressed Length (D) 8.0 (203.2)	Extended Length (E) 12.0 (304.8)	Max Lifting Force 80
SKU ML13	Rod Diameter (A) 0.25 (6.4)	Body Diameter (B) 0.625 (15.9)	Stroke (C) 5.5 (140.0)	Compressed Length (D) 9.0 (228.6)	Extended Length (E) 15.0 (381.0)	Max Lifting Force 80
SKU ML16	Rod Diameter (A) 0.25 (6.4)	Body Diameter (B) 0.625 (15.9)	Stroke (C) 7.0 (177.8)	Compressed Length (D) 10.0 (254.0)	Extended Length (E) 17.0 (431.8)	Max Lifting Force 80
SKU ML18	Rod Diameter (A) 0.25 (6.4)	Body Diameter (B) 0.625 (15.9)	Stroke (C) 7.75 (197.0)	Compressed Length (D) 10.75 (273.0)	Extended Length (E) 18.5 (469.9)	Max Lifting Force 80
SKU ML14	Rod Diameter (A) 0.25 (6.4)	Body Diameter (B) 0.625 (15.9)	Stroke (C) 8.0 (203.2)	Compressed Length (D) 12.0 (304.8)	Extended Length (E) 20.0 (508.0)	Max Lifting Force 80

Carbon Series Gas Springs - 8x18 Fixed Force

SKU	Rod Diameter (A)	Body Diameter (B)	Stroke (C)	Compressed Length (D)	Extended Length (E)	Max Lifting Force
SKU ML31	Rod Diameter (A) 0.312 (7.9)	Body Diameter (B) 0.75 (19.1)	Stroke (C) 2.25 (57.2)	Compressed Length (D) 5.25 (133.4)	Extended Length (E) 7.5 (190.5)	Max Lifting Force 150
SKU ML30	Rod Diameter (A) 0.312 (7.9)	Body Diameter (B) 0.75 (19.1)	Stroke (C) 3.0 (76.0)	Compressed Length (D) 7.0 (167.6)	Extended Length (E) 10.0 (254.0)	Max Lifting Force 150
SKU ML32	Rod Diameter (A) 0.312 (7.9)	Body Diameter (B) 0.75 (19.1)	Stroke (C) 3.0 (76.0)	Compressed Length (D) 7.40 (187.96)	Extended Length (E) 10.4 (266.5)	Max Lifting Force 150
SKU ML35	Rod Diameter (A) 0.312 (7.9)	Body Diameter (B) 0.75 (19.1)	Stroke (C) 3.6 (91.0)	Compressed Length (D) 8.0 (203.2)	Extended Length (E) 12.0 (304.8)	Max Lifting Force 150
SKU ML33	Rod Diameter (A) 0.312 (7.9)	Body Diameter (B) 0.75 (19.1)	Stroke (C) 5.5 (140.0)	Compressed Length (D) 9.0 (228.6)	Extended Length (E) 15.0 (381.0)	Max Lifting Force 150
SKU ML36	Rod Diameter (A) 0.312 (7.9)	Body Diameter (B) 0.75 (19.1)	Stroke (C) 7.0 (177.8)	Compressed Length (D) 10.0 (254.0)	Extended Length (E) 17.2 (437.0)	Max Lifting Force 150
SKU ML34	Rod Diameter (A) 0.312 (7.9)	Body Diameter (B) 0.75 (19.1)	Stroke (C) 8.0 (203.2)	Compressed Length (D) 12.0 (304.8)	Extended Length (E) 20.0 (508.0)	Max Lifting Force 150
SKU ML38	Rod Diameter (A) 0.312 (7.9)	Body Diameter (B) 0.75 (19.1)	Stroke (C) 9.8 (250.0)	Compressed Length (D) 13.2 (335.3)	Extended Length (E) 23.0 (584.2)	Max Lifting Force 150
SKU ML37	Rod Diameter (A) 0.312 (7.9)	Body Diameter (B) 0.75 (19.1)	Stroke (C) 10.2 (260.0)	Compressed Length (D) 16.1 (409.0)	Extended Length (E) 26.3 (668.0)	Max Lifting Force 150

Carbon Series Gas Springs - 10x22 Fixed Force

SKU	Rod Diameter (A)	Body Diameter (B)	Stroke (C)	Compressed Length (D)	Extended Length (E)	Max Lifting Force
SKU ML25	Rod Diameter (A) 0.39 (10.0)	Body Diameter (B) 0.87 (22.0)	Stroke (C) 10.6 (269.24)	Compressed Length (D) 15.7 (398.8)	Extended Length (E) 26.3 (668.0)	Max Lifting Force 175
SKU eddea82ad275	Rod Diameter (A) 0.39 (10.0)	Body Diameter (B) 0.87 (22.0)	Stroke (C) 11.5 (292.0)	Compressed Length (D) 16.49 (418.8)	Extended Length (E) 27.99 (711.0)	Max Lifting Force 175
SKU ML26	Rod Diameter (A) 0.39 (10.0)	Body Diameter (B) 0.87 (22.0)	Stroke (C) 11.7 (299.0)	Compressed Length (D) 15.2 (386.1)	Extended Length (E) 26.9 (683.3)	Max Lifting Force 175
SKU ML28	Rod Diameter (A) 0.39 (10.0)	Body Diameter (B) 0.75 (19.1), 0.87 (22.0)	Stroke (C) 13.75 (349.5)	Compressed Length (D) 17.15 (435.6)	Extended Length (E) 30.9 (785.0)	Max Lifting Force 175
SKU ML29	Rod Diameter (A) 0.39 (10.0)	Body Diameter (B) 0.87 (22.0)	Stroke (C) 15.0 (381.0)	Compressed Length (D) 21.3 (541.0)	Extended Length (E) 36.3 (922.0)	Max Lifting Force 175

Notes:

Required F1 must be within the catalog limits and in increments of 10lbs. (50 N).
F1 tolerance: 6 x 15 = ± 20 N, 8 x 18 = ± 30 N, 10 x 22 = ± 40 N.
Not all sizes are available in 10 pounds.
Do not stroke more than 5 times a minute. Fast operation rates lead to excessive heat buildup resulting in internal seal damage.
Gas springs are filled with oil and are under pressure. Please dispose of it properly.
Do not heat, open, or puncture.
Contact Ameritool for modified standards or for engineered specials that meet your exact needs.
ML29 comes with 13mm steel ball sockets; all other sizes are 10 mm composite ball sockets.
End fittings are non-removable on the 6 x 15 and 8 x 18 springs.
EE denotes no end mounts on spring.
